Introduction
Garages are shrinking, but vehicle collections aren't. Many owners struggle to fit a second car, a project vehicle, or a weekend toy into a single-bay footprint.
A 4-post lift solves this in two ways. It doubles your parking capacity by stacking one vehicle above another, and it turns your garage floor into a service bay for brake jobs, tire rotations, and undercarriage work.
This guide ranks the top 4-post lifts for both jobs. We'll also flag when a standard off-the-shelf unit won't cut it, and a custom stacking solution makes more sense.
Key Takeaways
- A BendPak HD-9 earns our top pick for its balance of capacity, build quality, and price
- Match capacity to your heaviest vehicle with margin to spare, not the bare minimum
- Confirm ALI/ETL certification, ceiling height, and concrete slab thickness before ordering
- Collectors or dealerships needing more than two vehicles per bay should look at custom vertical stacking, a specialty of manufacturers like Megalifters
Overview of 4-Post Car Lifts for Garage Storage and Service
A 4-post lift uses four vertical columns to support two drive-on runways. A hydraulic or cable-driven mechanism raises the entire platform, wheels and all, so the vehicle rests on its own tires rather than jack points.
That's the key difference from a 2-post lift, which lifts from frame contact points instead.

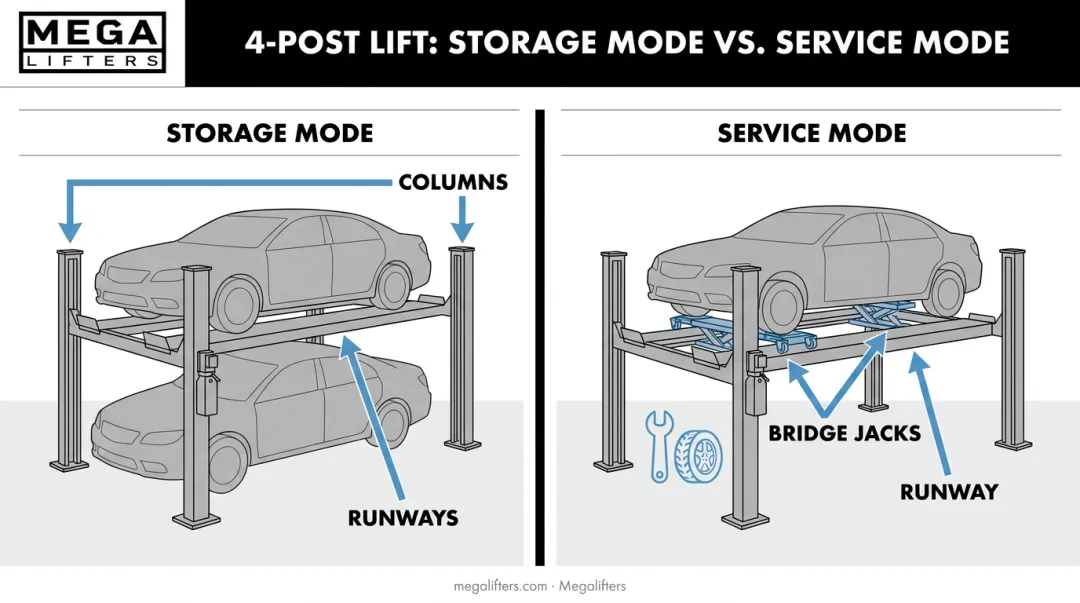

Owners use these lifts two ways:
| Use Case | How It Works |
|---|---|
| Storage | Park one vehicle on the raised platform, then pull a second vehicle underneath. This doubles bay capacity. |
| Service | Add rolling bridge jacks to lift the wheels off the runways for standing-height access to tire and brake work. |
The demand for this kind of space efficiency isn't hard to explain. In 2023, 37% of U.S. households owned two vehicles and another 22% owned three or more, according to Bureau of Transportation Statistics data drawn from the Census Bureau. Most garages weren't built with that math in mind.
The five lifts below cover the vast majority of single- and dual-vehicle garage needs. But large collections, dealership lots, and EV-equipped fleets often outgrow a standard runway lift entirely.
That's where a fully custom stacking system, like the ones Megalifters designs for unconventional spaces, starts to make more sense than forcing a stock unit into a job it wasn't built for.
Top 5 Best 4-Post Car Lifts for Garage Storage and Service
As custom lift manufacturers, we know what separates a platform that holds up for decades from one that cuts corners. We evaluated each lift on five factors:
- Lifting capacity relative to price
- Build quality and certification
- Runway and drive-through dimensions
- Warranty coverage
- Versatility across storage and service use
BendPak HD-9 — Best Overall
The HD-9 is the industry benchmark for a reason. It's a 9,000-lb lift with galvanized aircraft cables and a fully contained lifting mechanism, meaning no exposed cables to snag or fray over time. The mechanical safety-lock system engages automatically at multiple height points, and BendPak's dealer network makes parts and service easy to find almost anywhere in the country.
| Spec | Detail |
|---|---|
| Capacity | 9,000 lbs |
| Runway length | 158.25 in (200.5 in overall) |
| Drive-through width | 86.5 in (100.25 in between columns) |
| Starting price | $6,095 |
BendPak HDS-14 — Best for Heavy-Duty Service
Full-size trucks and vans need longer runways and a higher weight ceiling than a standard 9,000-lb lift can offer. The HDS-14 answers with a 14,000-lb rating and a heavy-duty cable system built for repeated, fleet-level use. Its 242-inch overall length swallows long-wheelbase pickups and cargo vans that overhang shorter platforms.
| Spec | Detail |
|---|---|
| Capacity | 14,000 lbs |
| Runway length | 197.5 in (242 in overall) |
| Drive-through width | 98 in (120 in between columns) |
| Price range | $8,120–$8,595 |
Atlas 414 — Best for Trucks and Wide Drive-Through
Dual-wheel trucks and oversized SUVs need width, not just length. The Atlas 414 delivers a 102.125-inch drive-through, the widest in this lineup, plus a commercial-grade 14,000-lb capacity. The extra clearance between columns also makes it a solid alignment-ready platform if you plan to add that capability down the road.
| Spec | Detail |
|---|---|
| Capacity | 14,000 lbs |
| Runway length | 208.625 in (255 in with ramps) |
| Drive-through width | 102.125 in (116 in between columns) |
| Price | $9,049 |
Atlas 412 — Best Mid-Tier Value
Not every truck owner needs 14,000 lbs of capacity. The Atlas 412 sits at 12,000 lbs, comfortably covering full-size trucks and large SUVs with margin left over, at a noticeably lower price than the 414. It's the pick for buyers who want commercial-grade build quality without paying for headroom they'll never use.
| Spec | Detail |
|---|---|
| Capacity | 12,000 lbs |
| Runway length | 194.5 in (236.5 in with ramps) |
| Drive-through width | 98 in (112.625 in between columns) |
| Price | $7,399 |
BendPak HD-9SW — Best for Dual-Vehicle Storage
The HD-9SW puts two runways side by side on one platform, so two vehicles ride up together above two more parked underneath. One important correction here: BendPak's manual caps the combined weight across both runways at 9,000 lbs total, not 9,000 lbs per platform. Treat it as a storage-density tool first, service platform second.
| Spec | Detail |
|---|---|
| Combined capacity | 9,000 lbs (both runways) |
| Runway length | 164 in (218.5 in overall) |
| Drive-through | 178 in combined; 192 in between columns |
| Starting price | $11,495 |
How We Chose the Best 4-Post Lifts
We cross-referenced manufacturer specs against certification records and real-world installer feedback, rather than relying on marketing copy alone. One recurring buyer mistake stood out: choosing a lift rated just barely above a vehicle's actual weight, leaving no margin for tool boxes, roof racks, or future vehicle swaps.
Our weighted factors:
- Capacity margin: how much headroom exists above your heaviest realistic vehicle
- Build quality: cable type, steel gauge, and lock mechanism design
- Runway and drive-through dimensions: the difference between a lift that fits your truck and one that doesn't
- Warranty terms: coverage length and what's actually included
- Installation prerequisites: ceiling height, concrete slab thickness, and electrical requirements
That last point matters more than most buyers expect. A complete lift model must be certified under ANSI/ALI ALCTV standards through an accredited testing lab. A UL or ETL mark on just the power unit doesn't cover the whole lift. Always check the ALI directory for the specific model, not the brand name.
Conclusion
Picking the right 4-post lift comes down to matching your actual storage or service needs against real dimensions and site constraints, not brand reputation alone. Verify ceiling height, slab thickness, and electrical setup before you order, and budget for bridge jacks if you're planning any service work.
Some garages, dealerships, and collections need more than a standard lift can offer. That might mean stacking three or four vehicles in a single bay, working around an unconventional space, or adding EV charging directly into the platform.
Megalifters designs and installs custom automobile stacking solutions built around your space, not just your vehicle.
Frequently Asked Questions
How thick should concrete be for a 4-post auto lift?
BendPak specifies a 4.25-inch, 3,000 PSI slab as the baseline for its 9,000-lb and 14,000-lb lift series. Atlas requires a thicker 6-inch, 3,000 PSI slab for its 412 and 414 models. Always test older slabs before installation rather than assuming they qualify.
What is the best 4-post auto lift?
The BendPak HD-9 is our top overall pick for its balance of capacity, build quality, and price. That said, "best" really depends on whether your priority is storage density, heavy-duty service, or a specific vehicle weight class.
What is the difference between an autostacker and a 4-post auto lift?
A standard 4-post lift raises one vehicle on fixed runways for storage or service. An autostacker, or parking lift, is a more compact system engineered for higher vehicle density, often customized for dealerships or tight urban lots.
How much ceiling height do I need for a 4-post lift?
There's no universal number. Atlas calculates it as both vehicle heights plus 8 inches, while BendPak uses both vehicle heights plus 10 inches for runway clearance and lock engagement. Check your specific model's formula before measuring your garage.
Can a 4-post lift store two cars at once?
Yes. Raising one vehicle and parking a second underneath is the primary storage benefit of a 4-post lift, subject to your under-platform clearance and total ceiling height.
Do I need a professional installer for a 4-post lift?
Professional installation is strongly recommended for anchoring, leveling, and safety testing. Experienced DIYers with a helper can self-install, but manufacturers don't publish a fixed installation-cost benchmark, so get a quote for your specific site.
